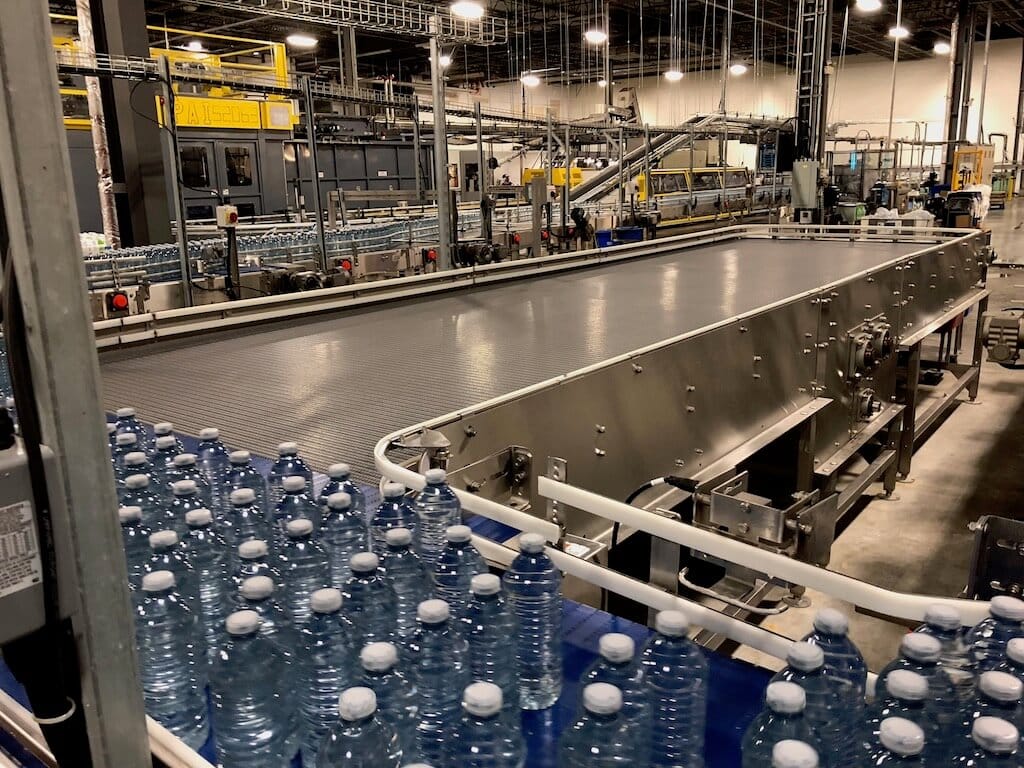

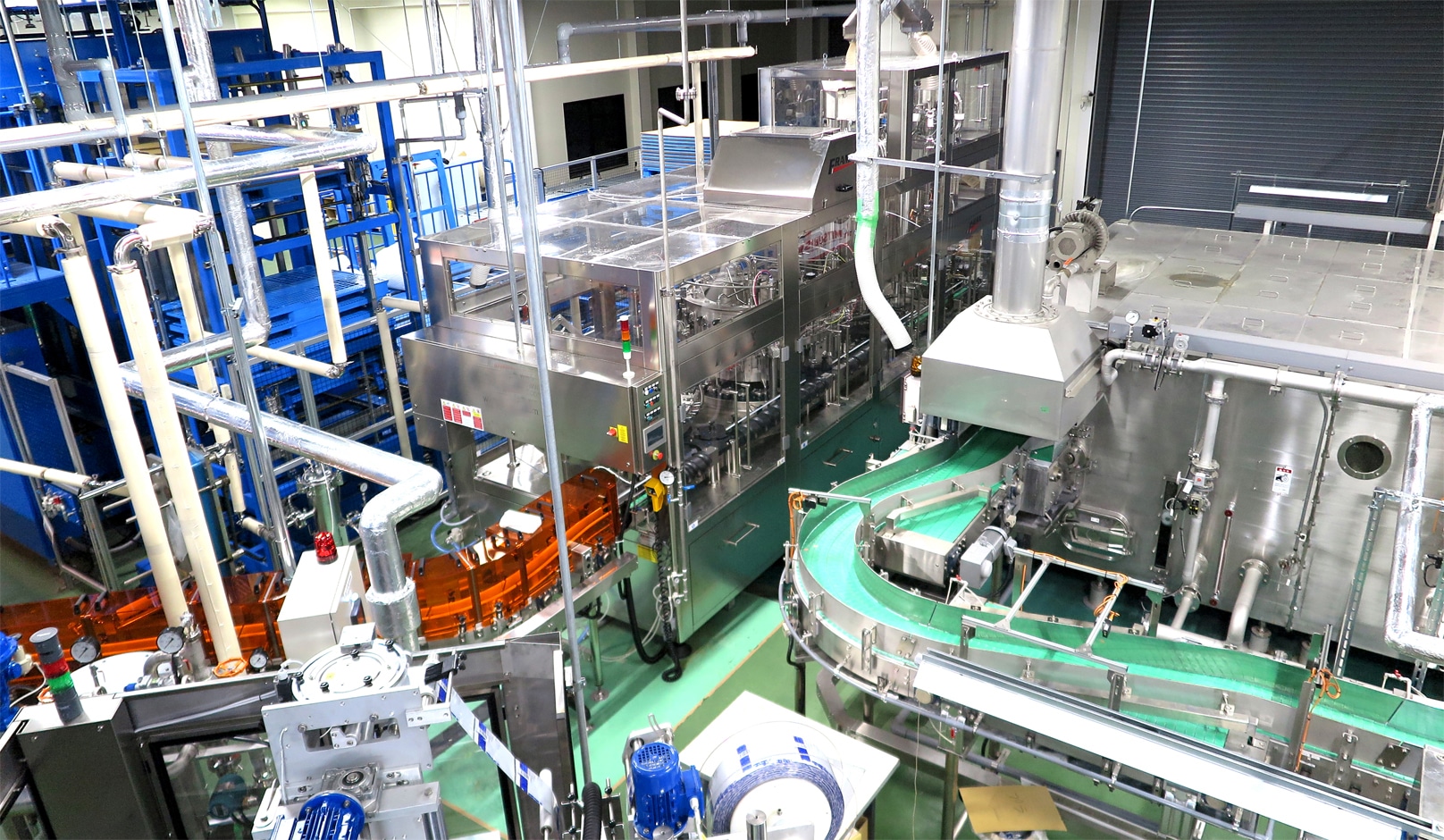

Bottling & Packaging Plants For Water

Complete lines for glass and PET bottles, filling using counter-pressure, gravity or flowmeter system (non-contact filling), with various options available to ensure the maximum product safety and “Ultra Clean” environment such as Laminar flow Hepa filtration, empty bottle sterilization, Ultra-Violet sterilisation of the caps and bottle necks.

Different line designs are supplied to suit customer requirements (eg. Glass/PET/Aluminium combi-lines).

Semi and fully automatic solutions based on tailor made filling equipment, complemented with depalletizers, premix and carbonating skids, labelling machines, inline control devices and all available options for bottle handling/conveying and for end of line equipment.

Production Capacity: 1000 bottles/hour – 48000 bottles/hour

Filing Systems

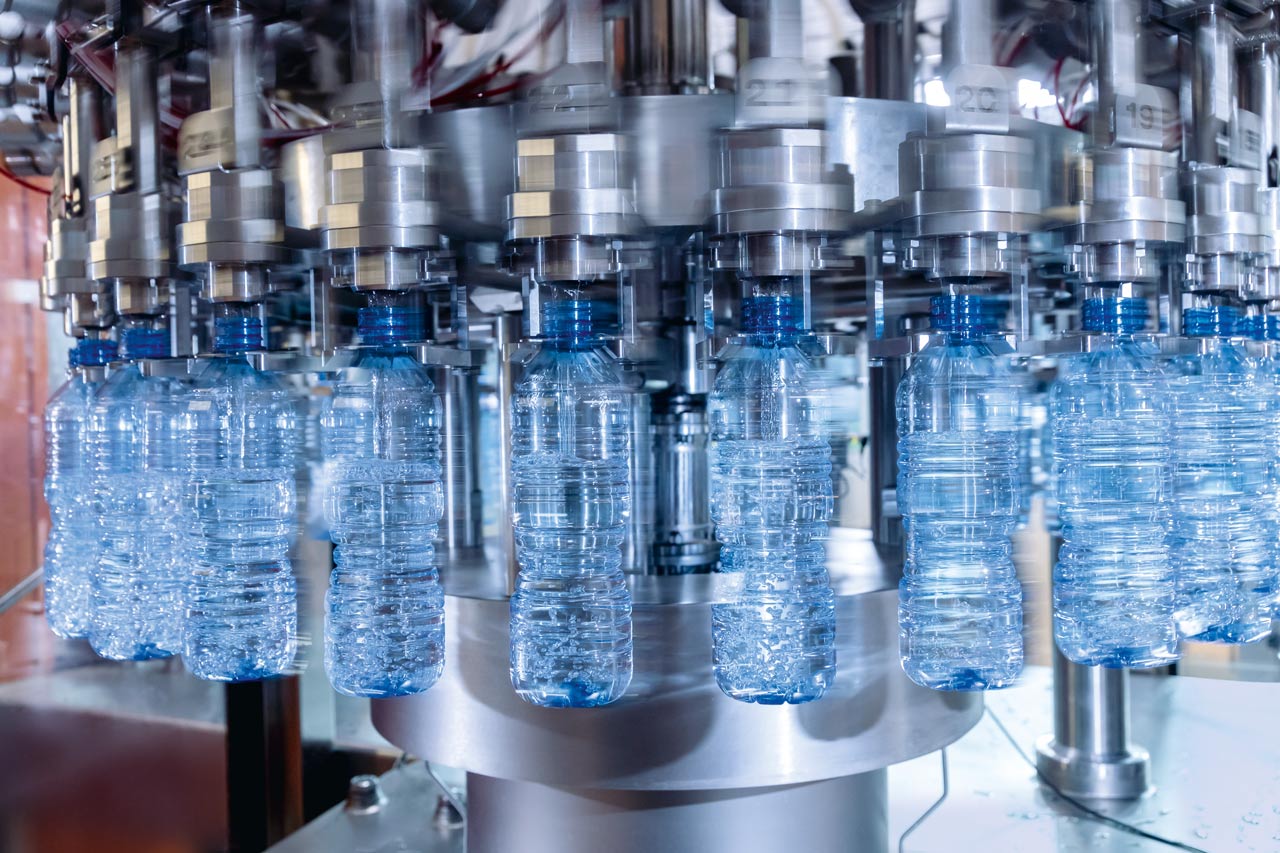

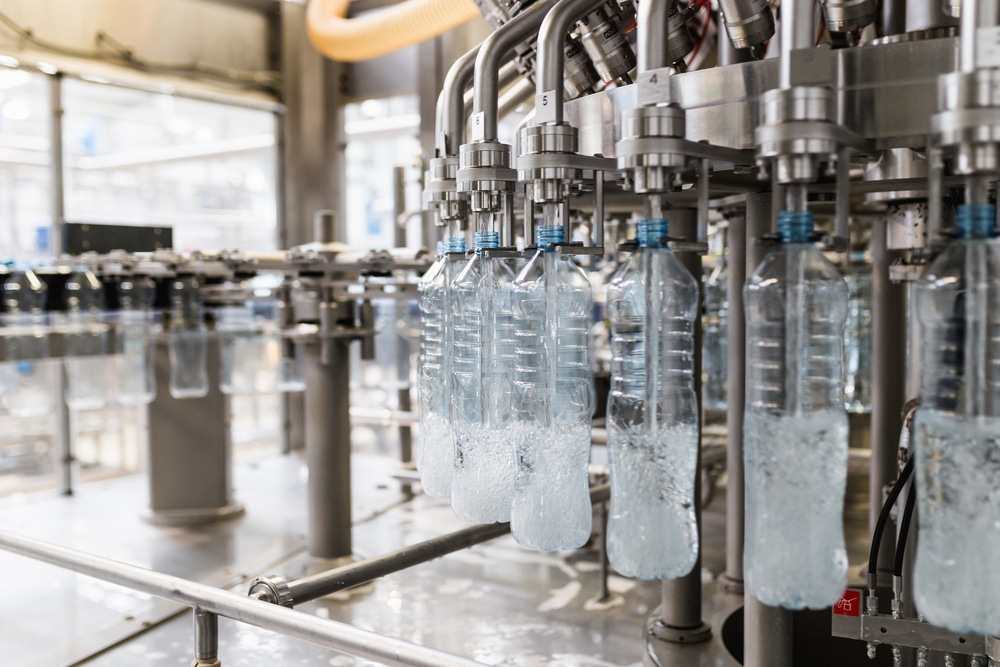

Counter pressure filling systems suitable for filling all kinds of carbonated and still products such as carbonated water, soft drinks, beer, sparkling wines etc. This is featured by various different types of filling valve designs, from the traditional mechanical counter-pressure, to the most sophisticated electro-pneumatic system.



The traditional mechanical counter-pressure valve enables to carry out several phases such as pressurization, CO2 injection, multiple pre-evacuation, levelling and snifting. The usage of the electro-pneumatic valve allow to carry out the same functions, but it is completely controlled and programmable from the operator panel. This allows the most up-to date technology and flexibility which is necessary to obtain high quality results and reduced risk of contamination.

Electronic flow meter filling system.

These systems assure maximum dosing precision and do not require any maintenance.



Thanks to the extremely small number of functional elements, the filling machine can be sanitized very easily and the Electronic Volumetric filling allows optimized filling under a microbiological profile.



The system works without pressure in the bottle and with a light positive pressure inside the filler bowl, allowing to process both high density and liquid products in containers of different materials.



The filling is controlled by the PLC that gives the go-ahead to start the filling when the sensor detects the presence of the bottles.



The electronic dosing devices with mass or magnetic flow meters show that the preset filling volume has been reached and control the closing of the valve, allowing a dosing precision of 0,2%.


As a result we obtain a precise volumetric filling and a microbiological safety.

Low vacuum-gravity filling systems are recommended for still, non-dense products such as for example still water, wine, alcoholic beverages (vodka, whiskey, brandy, etc), chemical products and generically any kind of flat non viscous liquids.



Various models of filling valves are available within this category, specifically designed to cater for the filling level requirements, bottle shape, neck shape and product.



Several optional features are available such as the “millimetric adjustment of the filling level” controlled directly from the user interface panel, air return outside the filling tank (to avoid the air from the bottles contaminating the product in the filler bowl), centralized level regulation and more.
